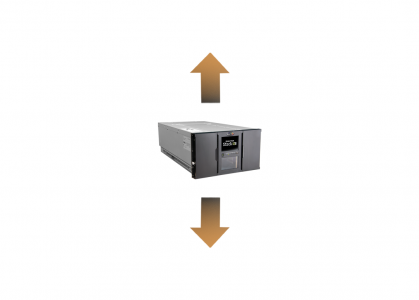

Spectra Stack
Stackable modules for modern data centres, built for 24x7 operation.
- Max slots
- 560
- Max native
- 22.4 PB
Featured technology partner
Spectra Logic tape and object storage.
Long-life, air-gapped storage that scales from terabytes to exabytes. Supplied, integrated and supported in India by Cinthamani for media archives and enterprise data.
01Two pathways
One platform, two kinds of customer.
Broadcasters use Spectra to keep their content for decades. Research and AI teams use it to keep datasets they cannot afford to lose or re-create. The hardware is the same; the workflow around it is not.
Media archive
For broadcasters and production houses
Finished programmes, rushes and libraries moved off production storage and kept on LTO, searchable from the MAM.
- Archive from DDP SAN through eMAM or StorageDNA
- Partial file restore back into the edit
- Two copies, one off-line
- Migration from older tape generations
Enterprise and AI data
For research, AI and data-heavy organisations
Datasets catalogued by Mediaflux, tiered to object storage and tape by policy, and staged back to GPU systems when needed.
- Active archive with one namespace
- Policy-driven tiering and recall
- Ransomware-resilient air gap
- Retention rules enforced automatically
02Tape libraries
From one rack to exabyte scale.
Four library families. Most customers start with the capacity they need today; slots and drives are added as data grows, without replacing the library.

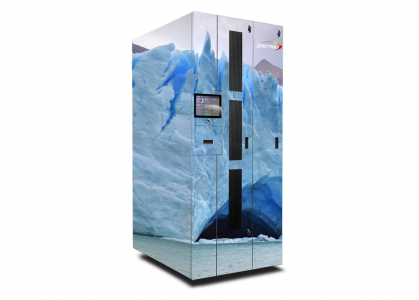

Spectra Cube
Flexible, easy to run and cost-effective for growing archives.
- Max slots
- 1,670
- Max native
- 66.8 PB

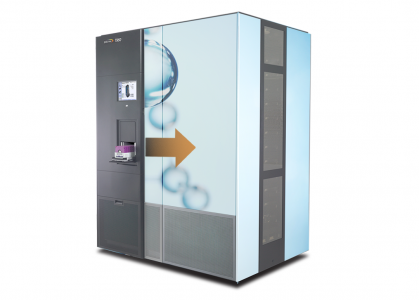

Spectra T950
High capacity with proactive media management.
- Max slots
- 10,020
- Max native
- 400.8 PB
Spectra TFinity
Highest density in the smallest footprint of any enterprise library.
- Max slots
- 56,400
- Max native
- 2.2 EB
Maximum configurations with LTO media, as published by Spectra Logic (TFinity Plus, 45 frames; T950, 8 frames). Native capacity, before compression.
03Software and object storage
The layer that makes tape easy to use.
Applications write to standard interfaces; Spectra software decides where data goes and brings it back.
Object storage
BlackPearl
Object storage gateway with an S3 interface, writing to disk, tape and cloud targets.
Lifecycle management
StorCycle
Finds inactive data on primary storage and moves it to lower-cost tiers, keeping it accessible.
Hybrid cloud
Spectra Vail
Manages data across on-premises storage and public clouds in one namespace.
04Why tape
The lowest-cost copy is also the safest.
Benefits as described by Spectra Logic, and the reasons our customers choose it.
01
Ransomware resilient
Air-gapped cartridges cannot be reached or encrypted by malware.
02
Extreme scalability
Terabytes to exabytes; more drives raise throughput for fast recoveries.
03
Decades of longevity
Data preserved and protected for multiple decades.
04
Lowest total cost
A fraction of the cost of comparable flash, disk or public cloud at scale.
05Integrations
Connected to the rest of the workflow.
Spectra libraries sit behind the applications our customers already use.
Media
eMAM and StorageDNA
Archive and restore from the asset catalogue.
Media archiveEnterprise
Arcitecta Mediaflux
Metadata, policy and recall for research and AI data.
Enterprise dataGateway
BlackPearl
S3 object interface to disk, tape and cloud.
Object storageLibrary
Spectra tape
Stack, Cube, T950 or TFinity.
LTO media06Cinthamani services
Sized, installed and looked after locally.
A library is a fifteen-year decision. We stay with it for all of them.
- Sizing and design. Capacity, drives and media plan from your data and growth.
- Supply and installation. Delivered, racked, cabled and commissioned.
- Integration. Connected to your MAM, data management or backup software.
- Migration. Data moved from older libraries and LTO generations, verified.
- Media management. Cartridge health, rotation and off-site copies.
- Support. Annual maintenance with on-site and remote response.
07Questions
Spectra Logic, answered.
Which Spectra library is right for us?
It depends on the data you hold today, how fast it grows and how quickly you need it back. Stack and Cube suit most departmental and mid-sized archives; T950 and TFinity suit large libraries and multi-petabyte growth. We size it from your numbers.
Can we start small and grow?
Yes. Spectra libraries add slots and drives through licences and modules, so capacity grows without replacing the library.
How is tape different from backup to disk?
Disk backup is online and fast but stays reachable by an attacker. Tape costs less per terabyte, lasts longer and can be kept off-line, which makes it the copy you can always restore from.
Who supports the library in India?
Cinthamani provides installation, first-line support and maintenance in India, working with Spectra Logic.
08Spectra Logic enquiries
Request library sizing.
Share your current data and yearly growth. We reply with a recommended library, drive count and media plan.
